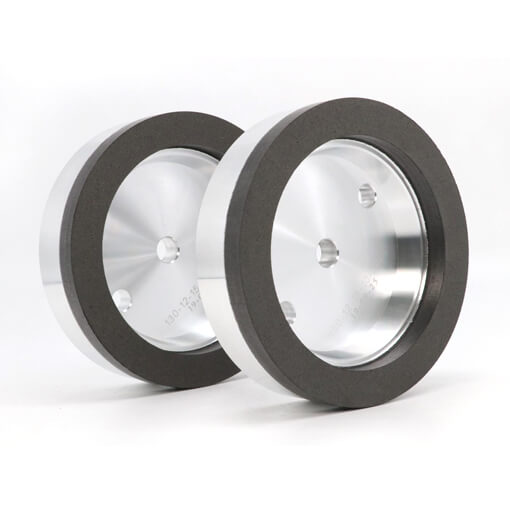

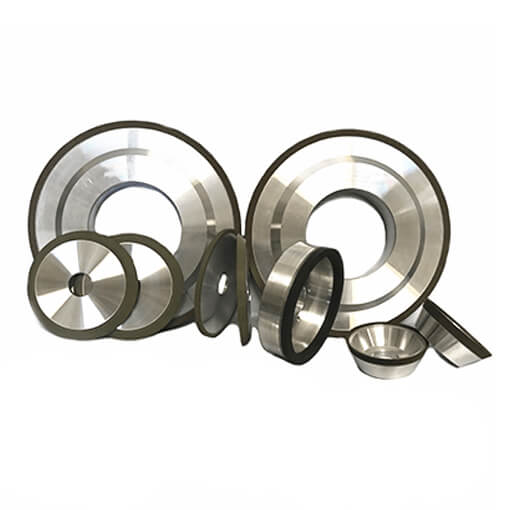

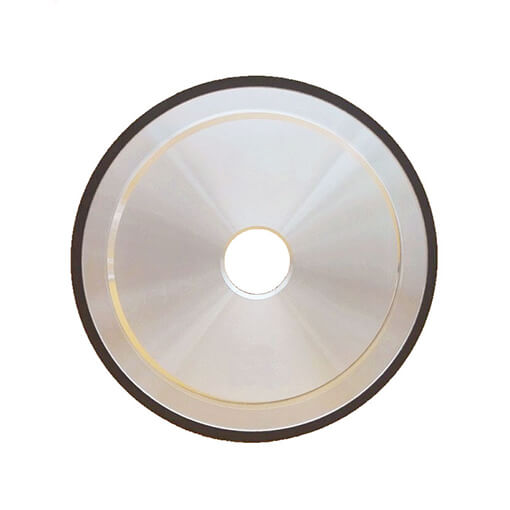

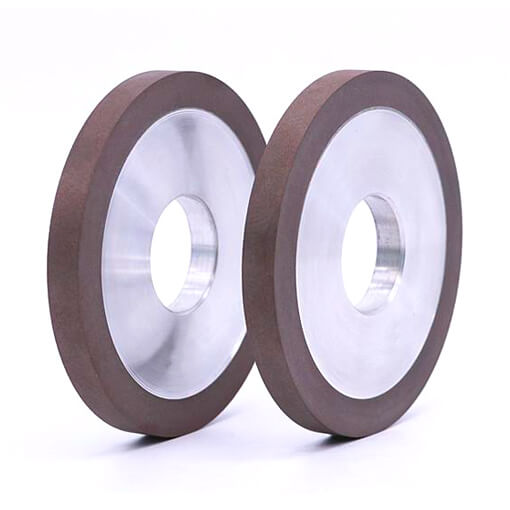

Resin Bond CBN Grinding Wheel

Resin bond CBN grinding wheel is the most common bond system used. It offers good elasticity, superior surface finish and highly efficient grinding performance.

Brand:

SOMEBETTER

Usage:

accurately grinding Tungsten Carbide, Ceramic, Cermet, Steel HRC, Glass and Others, etc

Size:

Diameter 20- Diameter 900,customized as your request

Material:

CBN+aluminum body

SEND EMAIL SEND INQUIRY

Product Introduction

Application

Parameter Table

Product Introduction

Resin bond CBN grinding wheel is the most common bond system used. It offers good elasticity, superior surface finish and highly efficient grinding performance.

Resin Bond CBN Grinding Wheel feature:

1）high efficiency；

2）abrasion resistance, high consumption

3）Small grinding force, grinding temperature is low

4）high accuracy and good surface quality of workpiece, the shape of the workpiece stability is good

5）with more pores, grinding is good for chip removal and cooling, not easy to jam, not easy to burn the workpiece

6）easy sharping

Advantages:

1) thickness as thin as 0.5mm ,diameter up to 900mm.

2)We are one of the few manufacturers that can offer electroplated,resin,vitrified and metal bonds

3)Offers a variety of shapes and custom diamond wheels are no extra cost

4)free testing samples until you satisfied

5)Fast delivery within two weeks.

6)Long working life and high grinding efficiency

Application

Resin Bond CBN Grinding Wheel application:

Accurately grinding Tungsten Carbide, Ceramic, Cermet, Steel HRC, Glass and Others, etc

Parameter Table

D	T	X	H	Con	Grits Size
mm	mm	mm	mm	%	D151 D126 D107 D91 D76 D64 D54 D46
50	0.8-20	3-20	16-25.4	50%-150%
75	0.8-20	3-20	22.23-25.4	50%-150%
100	3- 12	10-20	22.23-25.4	50%-150%
125	3-15	10-20	22.23-25.4	50%-150%
150	3-20	10-25	22.23-25.4	50%-150%
175	6-20	10-25	22.23-25.4	50%-150%
200	23-20	10-25	22.23-25.4	50%-150%
250	6-25	10-30	22.23-25.4	50%-150%
300	6-25	10-30	22.23-25.4	50%-150%
350	10-25	10-30	22.23-25.4	50%-150%
400	6-30	20-35	22.23-25.4	50%-150%
450	6-30	20-25	22.23-25.4	50%-150%
500	10-30	20-35	22.23-25.4	50%-150%
600	20-30	25-35	22.23-52.0	50%-150%
other size are upon requirement
