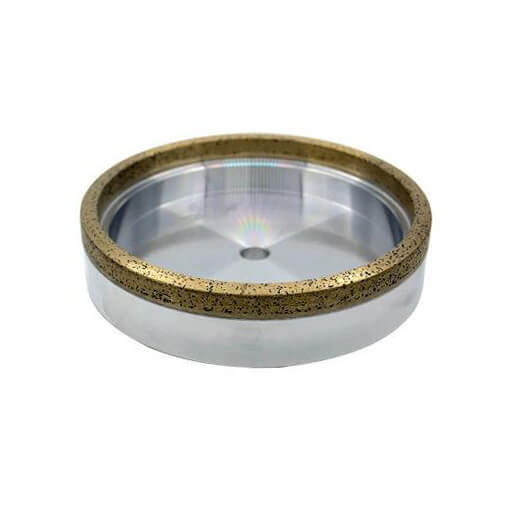

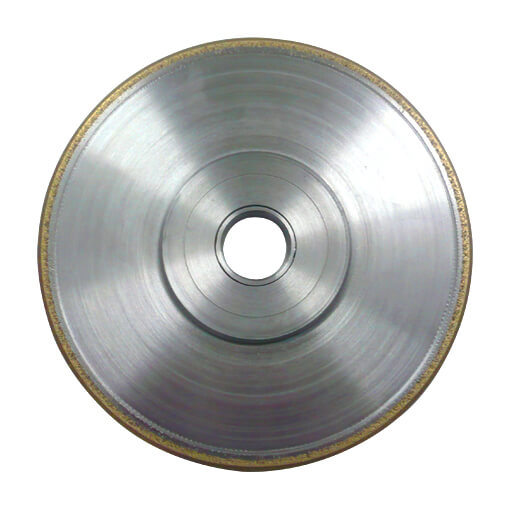

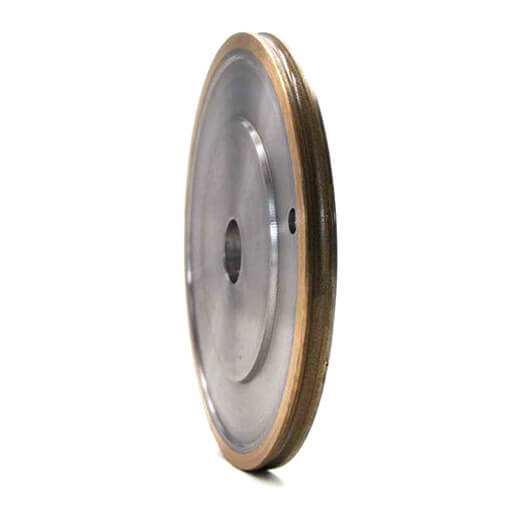

Metal Bond CBN Grinding Wheel

Metal bond offers the best grit retention and a very long service life. Form holding is the best available, but it requires high horsepower machinery and is much slower cutting than resin bonds.

Brand:

SOMEBETTER

Usage:

PCD, PCBN, Hard Alloy, High Speed Steel, Cermet, Ceramic, Cast Iron, Magnetic Material, etc.

Size:

Diameter 20- Diameter 900,customized as your request

Material:

CBN+metal body

SEND EMAIL SEND INQUIRY

Product Introduction

Application

Parameter Table

Product Introduction

Metal bond offers the best grit retention and a very long service life. Form holding is the best available, but it requires high horsepower machinery and is much slower cutting than resin bonds.

Metal Bond CBN Grinding Wheel feature:

1.high grinding efficiency

2.long service life

3.good shape retentivity

4.in combination with high strength

5.high temperature resistance

6.thermal conductivity and good abrasion resistance

Advantages:

1) thickness as thin as 0.5mm ,diameter up to 900mm.

2)We are one of the few manufacturers that can offer electroplated,resin,vitrified and metal bonds

3)Offers a variety of shapes and custom diamond wheels are no extra cost

4)free testing samples until you satisfied

5)Fast delivery within two weeks.

6)Long working life and high grinding efficiency

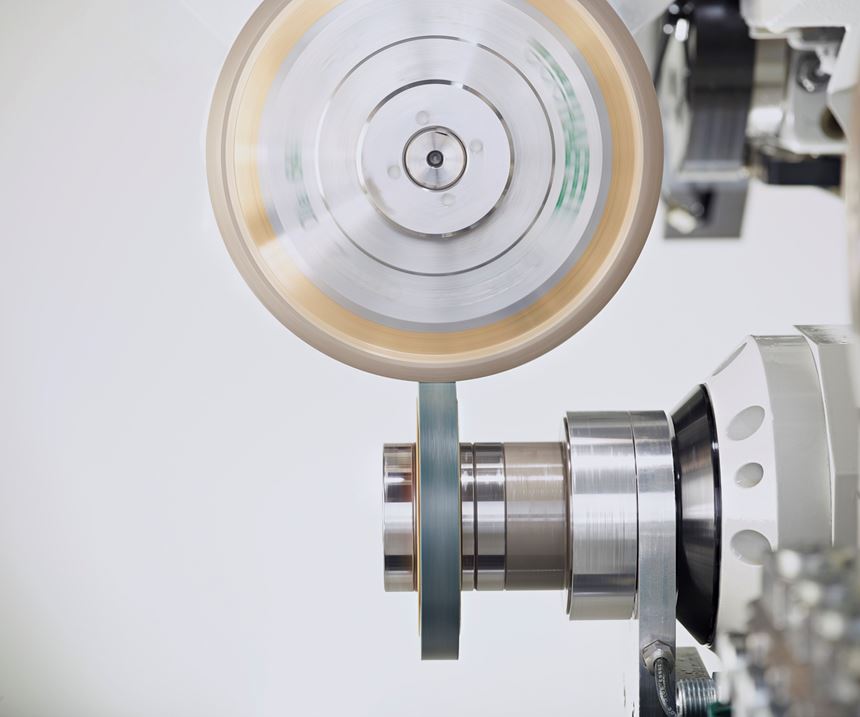

Application

Metal Bond CBN Grinding Wheel application:

PCD, PCBN, Hard Alloy, High Speed Steel, Cermet, Ceramic, Cast Iron, Magnetic Material, Stainless Steel, Glass, Monocrystalline,Silicon

Parameter Table

D	T	X	H	Con	Grits Size
mm	mm	mm	mm	%	D151 D126 D107 D91 D76 D64 D54 D46
50	0.8-20	3-20	16-25.4	50%-150%
75	0.8-20	3-20	22.23-25.4	50%-150%
100	3- 12	10-20	22.23-25.4	50%-150%
125	3-15	10-20	22.23-25.4	50%-150%
150	3-20	10-25	22.23-25.4	50%-150%
175	6-20	10-25	22.23-25.4	50%-150%
200	23-20	10-25	22.23-25.4	50%-150%
250	6-25	10-30	22.23-25.4	50%-150%
300	6-25	10-30	22.23-25.4	50%-150%
350	10-25	10-30	22.23-25.4	50%-150%
400	6-30	20-35	22.23-25.4	50%-150%
450	6-30	20-25	22.23-25.4	50%-150%
500	10-30	20-35	22.23-25.4	50%-150%
600	20-30	25-35	22.23-52.0	50%-150%
other size are upon requirement
